Description

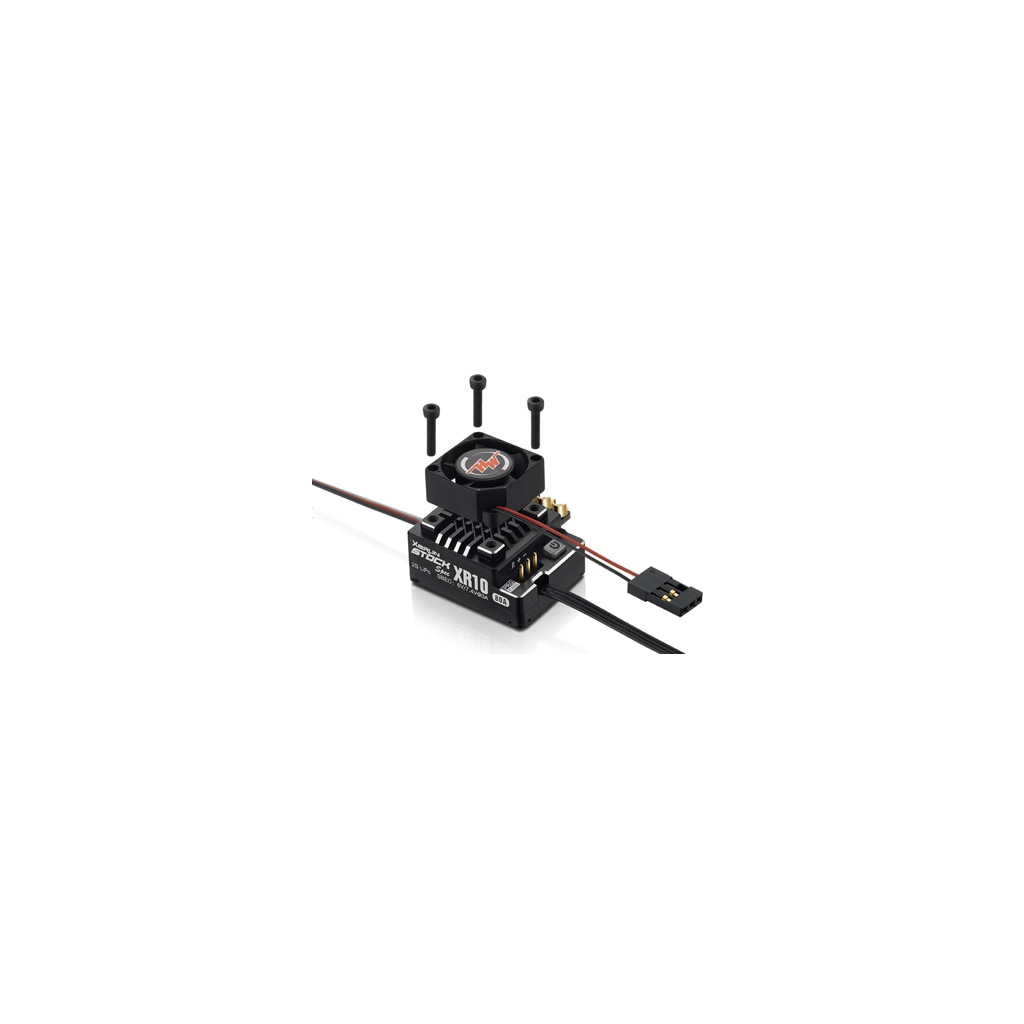

Special Design for STOCK Class Racing
Reliable hardware combined with great software (contains 5 common ready-to-use profiles) creates an ideal power solution to the STOCK class of 1/10 scale touring car, buggy racing.
Innovative Double-switch Design
A built-in electronic switch combined with an external detachable switch effectively helps the XR10 Stock Spec avoid some flaws of ordinary or one-switch ESCs. The internal switch makes the wiring convenient, the external switch is really handy when the car shell isinstalled on and the built-in switch is no longer touchable.
Programming/Upgrading/
Data Reading Wirelessly
With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.
Small Size & Light Weight
This ESC is smaller and lighter than the standard version XR10 Pro and it’s the mini version of XR10 Pro 160A. The small size (31.5×25.6×16.1mm) makes the installation convenient and the light weight (only 28g w/o wires) provides more weight margin when adjusting the balance of the chassis.
Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the user to use various high voltage servos.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (esp. the Stock class).
Data-logging Capability
This ESC features the data-logging function which can record the maximum ESC & motor temperatures, the minimum battery voltage, the maximum motor RPM and etc. in real time and allows users to check those data via a LCD program box or
WiFi module after each use.
Specifications
Type
Scale – 1/10th
Brushed/Brushless – BL
Sensored/Sensorless – SD
Waterproof – No
Specifications
Cont./Peak Current – 80A/380A
Input Voltage – 2S Lipo/5-7 Cell NiMH
BEC Output – Switch Mode: 6V@3A
Wires & Connectors
Input Wires – Black-14AWG-200mm*2
Output Wires – Black-14AWG-200mm*3
Input Connectors – No
Output Connectors – No
(Note: All the wire length above is the original length not the length you see from the outside.)
Fan
Size – 20x20x8mm
Voltage Range – 5-7.4V
Powered by – BEC
ESC Programing via
SET Button on ESC – Not Supported
LED Program Box – Not Supported
LCD Program Box – Supported
WiFi Module – Supported
Program Port – Separate Program Port
Firmware
Firmware Upgrade – Supported
Size & Weight
Size – 31.5×25.6×16.1mm
Weight – 54.5g (w/Wires)
Applications
Motors – SL BL Motors SD BL Motors
Vehicles – STOCK class of 1/10th Touring Car & Buggy Racing
KV Rating/T Count – 1/10th Touring Cars?10.5T, 1/10thBuggy?13.5T
