Description

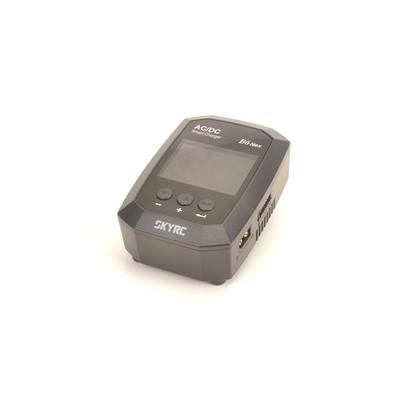

From SKY RC is this small, fantastic looking B6 Nex AC/DC charger.
Building on the success of the?iconic legendary iMax B6, the SkyRC B6 Nex, is a high-performance solution designed for hobbyists.
With the dual power AC/DC input, the B6 Nex can charge the 1-6 cell Li-ion or LiPo batteries at a maximum charge current of 10A. The built-in Bluetooth 5.0 enables B6 Nex’s connectivity with smartphones. The app can push notifications reminding users that charge or discharge is completed or there is a firmware upgrade. With the B6 Nex, charging becomes a faster and more convenient experience!
AC/DC Dual Power Input
B6 Nex comes with both AC and DC power input, which is useful in different circumstances.
Multi-purpose for Most Battery Chemistries
The charger?comes with the charging algorithm for the most common battery chemistries: LiPo, Li-Ion, LiHV, LiFe, NiMH, NiCD, and Pb (lead acid).
Specifications
Power
DC Input : 10-30V
Charge: 200W
Discharge: 10W
AC Input: 100-240V(50-60HZ)
Charge: 50W
Discharge: 10W
Battery
BatteryTypes/Cells:
LiPo/LiIon/LiFe/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 1-10S(2-20V)
Battery Capacity Range:
NiMH/NiCd: 100-50000mAh
LiPo/LiIon/LiFe/LiHV: 100-50000mAh
Charge and Discharge
Charge Voltage
NiMH/NiCd: Delta peak detection
LiPo: 4.18-4.25V/cell
LiFe: 3.58-3.7V/cell
Pb: 2.4V/cell
LiIon: 4.08-4.2V/cell
LiHV: 4.25-4.35V/cell
Discharge Cut-off Voltage
NiMH/NiCd:0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiFe: 2.6-2.9V/cell
Pb: 1.8V/cell
LiIon: 2.9-3.2V/cell
LiHV: 3.1-3.4V/cell
Charge Current: 0.1A-10.0A
Discharge Current: 0.1A-2.0A
Balance Cells: 1-6 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes off
Charge Method:CC/CV for lithium types and lead(Pb) batteries.? Delta-peak Sensitivity for NiMH/NiCd.
