Description
OMP M1 Evo BNF : OSHM-M1EVO

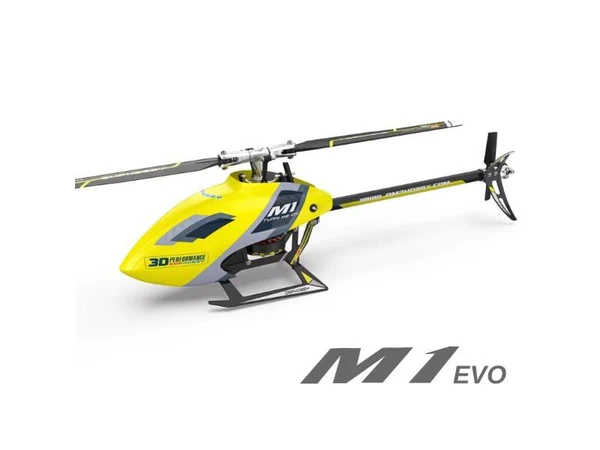

The OMPHobby M1 EVO RC Helicopter is the latest revision of the M1 helicopter. It has an updated carbon fibre frame and available in 4 new colours.
The OMPHobby M1 RC Helicopter BnF is a great micro (150 size) 3D Flybarless RC helicopter. Best for indoor flying during bad weather days. It can be flown outside as well.
Highlights of the M1 EVO:

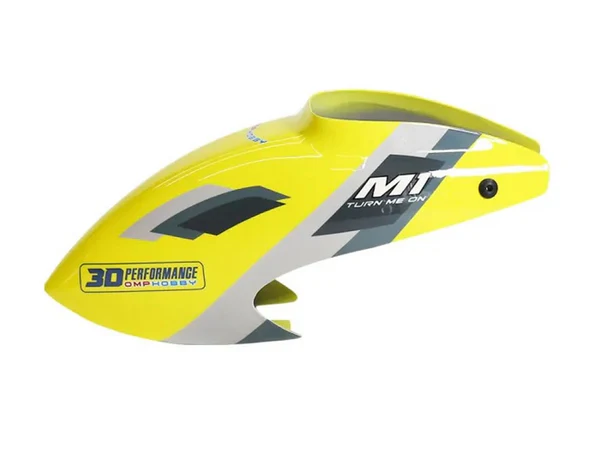

- All new visual design fitting with OMP’s new line, available in white, red, orange and yellow
- Newly designed carbon fibre frame with central aluminium backbone
- New, crash-proof aluminium tail motor mount with painted CF tail fin
- Length adjustable tail boom for easy CG adjustment
- 1g lighter than the original M1
- Proven propulsion system of the M1, allowing for efficient, long flights
- Swash levelling tool included in package
Features:
- High performance direct drive 3D helicopter with dual Brushless motors
- 290mm Main rotor diameter
- Weight:Approx 118g
- Six Core Advantages
- Adjustable Flight Controller Parameters
- Dual Brushless Direct Drive
- High-performance 3d Flight
- High Precision
- Low Noise
- Easily Maintained
Specifications:
- Main motor: Sunnysky R23-II
- Tail motor: Sunnysky R08-II
- Diameter of main blades: 290mm
- Diameter of tail blades: 46.5mm
- Weight: approx. 118g
- Overall size: 290*88*290
- Battery: 2s 350mAh 50C (1 battery included)
- Flying time: maximum flying time 8Min / 3D violent 3min
- Servos: Digital sub micro, metal gears, plastic case
- Flight controller: Adjustable parameters, governor mode
- Receiver: OMP integrated receiver plus Futaba SFHSS, S-BUS & DSM ports for external Rx.
- Included accessories: Charge lead, nut wrench, screwdriver, 1mm hex wrench, spare screws & servo arms.
Contents:
- Helicopter
- Battery (Installed in helicopter)
- EPP Box
- Wrench
- 2x Screw drivers
- 3x Servo Horns
- Spare Screws
- 1x Balance Charging Cable
- 1x Flight controller settings sheet
Setup and tuning videos:
How to trim cyclic and pitch:
