Description

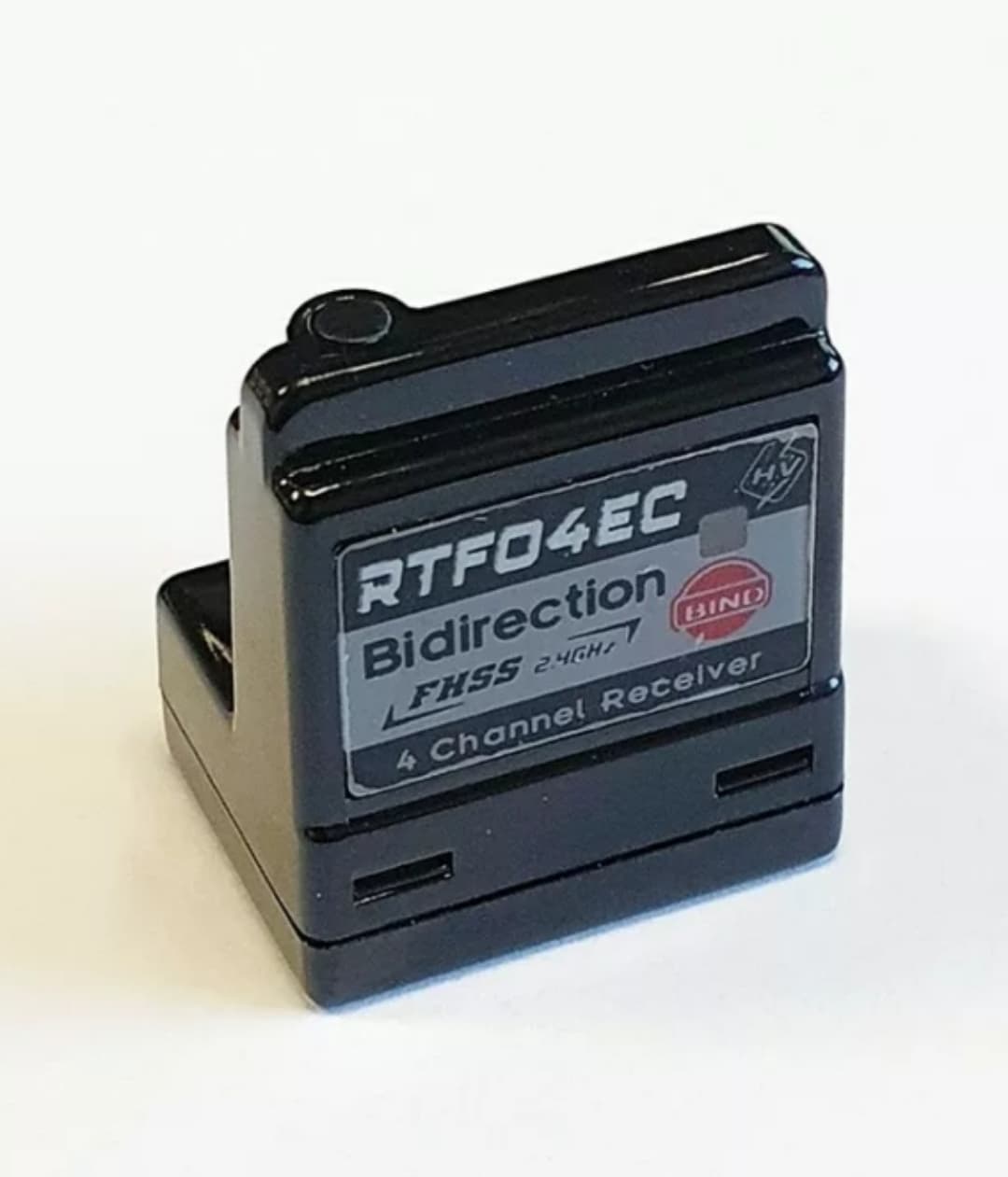

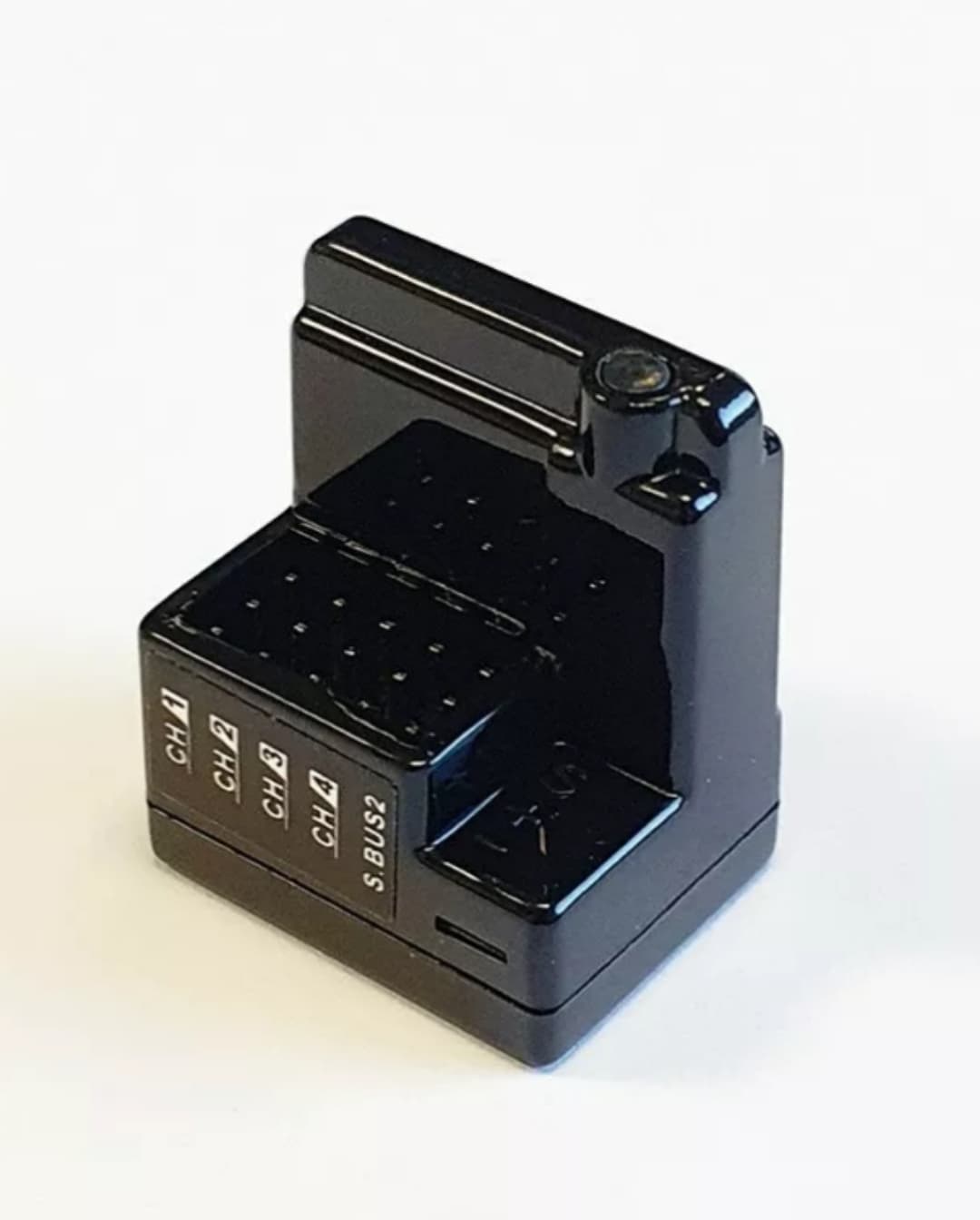

Ludicrous are proud to introduce the new Futaba compatible receiver RT04EC.
Compatibility
- Compatible with FUTABA T-FHSS remote control system.
- Suitable for FUTABA 3PV, 4PV, 4PM, 4PL, 4PLS, 4PX, 4GRS 7PX, 7PXR, 7XC,10PX etc.
Features
- Bidirectional communication system, monitor the receiver voltage?on the transmitter in real time.
- High sensitivity built-in antenna, full channel 4CH+S.BUS2, suitable for all types. of radio control cars, simulation rock crawlers etc.
- T-shape design, compact with small footprint. 23.6 x 18.4 x 28.4mm.
Item: .
Weight: 7.3g.
Input Voltage: 3.5-8.4V.
Application: Surface.
Dimension: 23.6 x 18.4 x 28.4mm.
No. Of Channels?4CH+S.BUS2.
Mode Normal/ High Speed.
Bind Procedure:
The operation mode of this receiver is bidirectional communication, each transmitter only can bind with one transmitter at one time. Once binding is successful, the receiver will save the record automatically. If need to change to use with new transmitter, it need to bind again with the new device. 1)Keep the transmitter and receiver within 0.5 meter; 2) Turn on the transmitter, get to the SYSTEM menu and select BIND; 3) Power on the receiver, and long press the BIND button for 2 seconds to enter the code matching status, the red LED will flash, then turn green, binding is succeeded; 4) Exit the binding mode at this moment, restart the power supply of the transmitter, the LED light is solid green, that means binding is successful. Otherwise, please repeat the above procedure if binding is failed.
