Description
High Power Output
Continuous current of 160A and peak current of up to 1200A guarantees a stable and high power output during competitions.
Special Design for Top Racing
Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles)
creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.
Programming / Upgrading / Data reading wirelessly
With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.
Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate
throttle and brake control for all classes of competitions (esp. the Stock class).

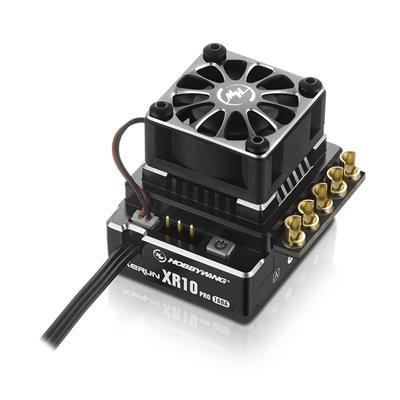

Efficient Heat Dissipating System
The aluminum casing and reticular heat sink combined with the HOBBYWING patented
copper heat-conductive plates which are attached to the MOSFET board allows the internal
heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable
cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.
High current/voltage BEC
The built-in switch mode BEC with a maximum output of 8A and voltage adjustable
between 6V and 7.4V allows the user to use various high voltage servos.
Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.
Built-in Electronic Switch
The internal electronic switch with a lifespan of over 50000 on/off cycles completely solves the problems like stuck reed, rusted contact points, and automatic shutdown conventional mechanical switches often have.
Innovative data-logging Function
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in
real time and allows the user to analyze the recorded data via a the LCD program box or WiFi module after each use.
Specification
Cont./Peak Current – 160A / 1200A
BEC Voltage/Current – 6V/7.4V,4A
BEC Voltage Regulation – Switch Mode
Fan is Powered by – Powered by the BEC (prolongs the service life of the fan)
Fan shroud – Yes
Fan Speed – High
Remote Off – Enabled/Disabled Switchable
(Motor) Drive Mode – Full Sensored/ Sensored or Sensorless Hybrid
COAST – Switchable
PWM Drive Frequency – 0-20% Adjustable
Brake Frequency – 1K/2K/4K/8K/12K/16K Adjustable
Brake Mode – 0.5K/1K/2K/4K Adjustable
Boost Timing Activation – Linear/Traditional/Hybrid Adjustable
RPM/Auto Adjustable
Input Wires – Black-13AWG-200mm*2
Output Wires – Black-13AWG-200mm*3
Input Connectors – No
Output Connectors – No
ESC Programing via
SET Button on ESC – Not Supported
LED Program Box – Not Supported
LCD Program Box – Supported
WiFi Module – Supported
Programming Port – Separate
Firmware Upgrade – Supported
Size – 37.5X31.6X31.6mm
Weight – 95g
Motors – SL BL Motors / SD BL Motors
Vehicles – 1/10th Touring Car/Buggy/Top Racing, 1/10th Drift Car/F1, 1/10th & 1/8th Crawler
KV Rating/T/Count – 2S LiPo/6S NiMH: (Touring Car) T≥3.5T, (Buggy) T≥4.5T.
3S LiPo/9S NiMH: (Touring Car) T≥6.5T, (Buggy) T≥8.5T.
