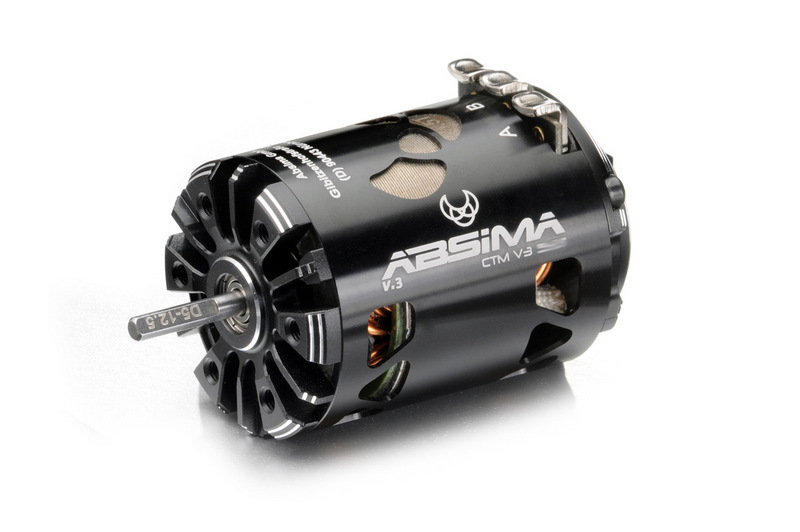

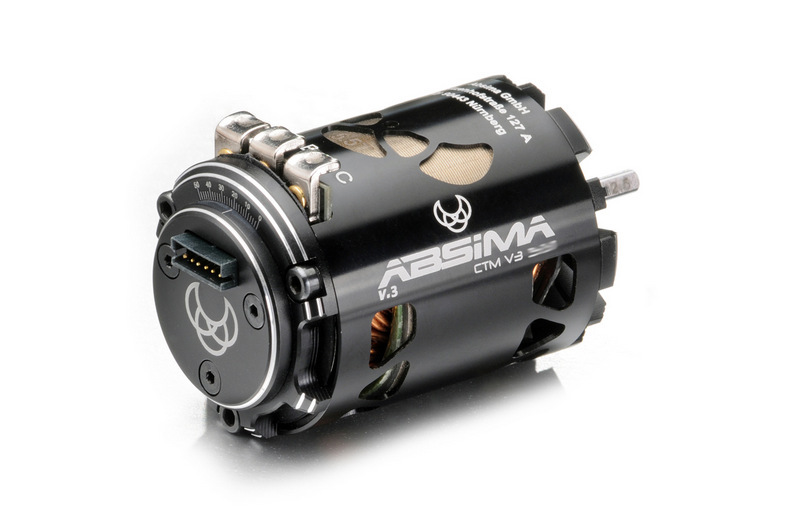

Description
NEW DESIGN – LESS WEIGHT – OUTSTANDING POWER!
For nearly 1 year our team has been working to create the new REVENGE CTM V3 competition brushless motors. Outside, we changed the shell design to reduce weight and for a maximize cooling and a outstanding heat dissipation.
Inside, the motors are featuring a new unique high-torque stator to create maximum power output and RPM. Of course all motors are sensored powered (including sensor cable) with adjustable timing and come with stainless steel ball bearings.
FEATURES:
-
CNC-machined lightweight can
-
High-torque stator
-
High strength, balanced rotor
-
Optimized air cooling
-
Stainless steel ball bearings
-
Silver-plated solder tabs
-
Adjustable timing
-
Sensored (cable included)
-
2-Pole
-
Developed for maximal performance
-
ROAR aproval (pending)
TECH SPECS:
-
Turns: 6.5T
-
Turns/volt: 5300KV
-
Power: 510W
-
Current A: 62A
-
Efficiency: 93%
-
Voltage/Cells: 1-3S LiPo
- Ø drive shaft: 3.175 mm
-
Length drive shaft: 15.2 mm
-
Ø w/o solder tabs: 35,8 mm
-
Length of motor can: 51.8 mm
-
Weight: 165 gr
HOMOLOGATION:
